Extraction group

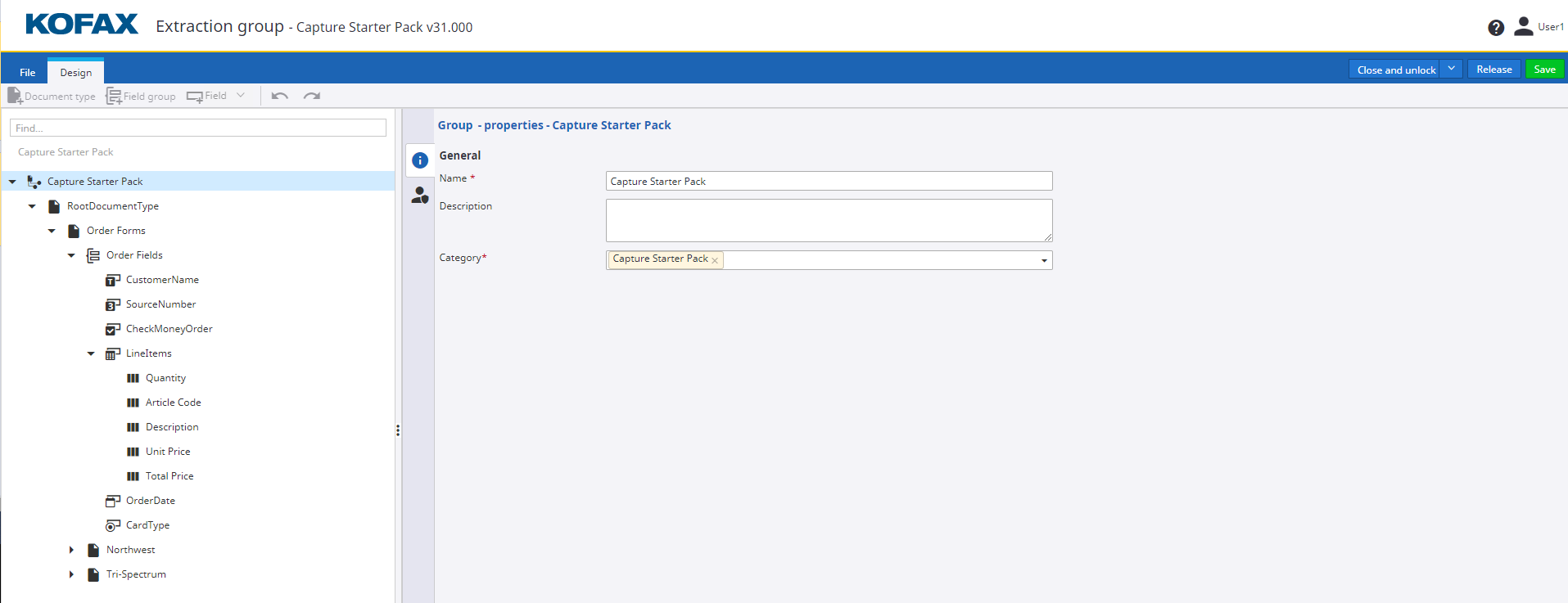

To open the Capture Starter Pack extraction group, navigate to Capture, and click Extraction groups. On the Extraction groups page, on the Category list, select Capture Starter Pack. The Capture Starter Pack extraction group is displayed in the list. Click the Capture Starter Pack. The extraction group opens in a new browser tab. Expand the Order Forms document type to view the other document types. You can also search for the required document type name.
The Capture Starter Pack extraction group contains the following document types:
- Order Forms
- Northwest
- Tri-Spectrum
The Northwest and Tri-Spectrum document types are available within the Order Forms document type. The Order Forms document type includes the Order Fields field group, which includes the following fields.
| Field | Type | OCR |
|---|---|---|
|
CustomerName |
Text |
RS_MachineAlphanum (RecoStar 5.0) |
|
SourceNumber |
Number |
Bar Code Locator |
|
CheckMoneyOrder |
Boolean |
OMR_Manual (OMR) |
|
LineItems |
Table |
|
|
LineItem - Quantity |
Number |
FR_HandNum |
|
LineItem - Article Code |
Text |
FR_HandNum |
|
LineItems - Description |
Text |
FR_HandAlphanum |
|
LineItems - Unit Price |
Number |
FR_HandNum |
|
LineItems - Total Price |
Number |
FR_HandNum |
|
OrderDate |
Date |
RS_HanNnum (RecoStar 5.0) |
|
CardType |
Choice (Possible values: Visa, MasterCard, American Express) |
Default OMR for each option. |
The Verification configuration determines which fields appear in the Verification activity. The CustomerName, SourceNumber, and CheckMO fields require configuration.
The Northwest and Tri-Spectrum document types inherit the Order Fields field group so that they both have all the fields from the Order Fields field group. They are trained using the Transformation Designer. The Extraction activity uses the training result to recognize and populate document fields automatically.
