Configure Web Capture Communication Port in AutoStore

To configure the Web Capture communication port for Business Connect Server, do the following:

  1. Open AutoStore Process Designer, double-click the Web Capture icon, and click the Web Server tab.

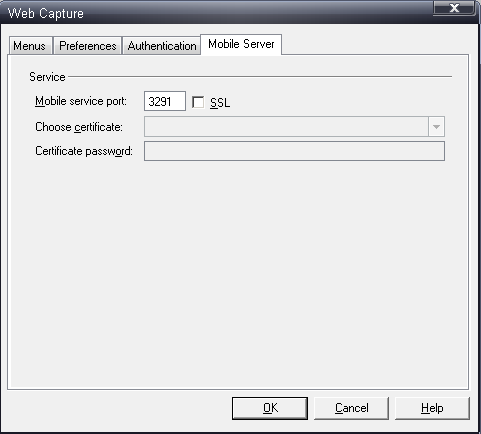

    Web Capture mobile service port
  2. For Mobile service port, enter the port used for Business Connect Server communication.
    Note: The value entered here must match the value entered for Service Port on the Workflow Engine tab of Business Connect Server Configuration Manager. See Workflow Engine Configuration.
  3. Save and restart the task.
  4. On the Workflow Engine tab of the Business Connect Server Configuration Manager, confirm that the AutoStore Server address is correct and that the Mobile service port number is the same specified for Web Capture.
    Workflow Engine Configuration - AutoStore server address
    If Business Connect Server is installed on the same host as AutoStore, enter localhost for Server Address. If AutoStore is on a different machine, enter the IP address or host name for the AutoStore server.
  5. Click Apply, and then click the refresh button in the License box. The License Status switches to “Licensed”.
