Logging Into Unified Client for Samsung Smart UX

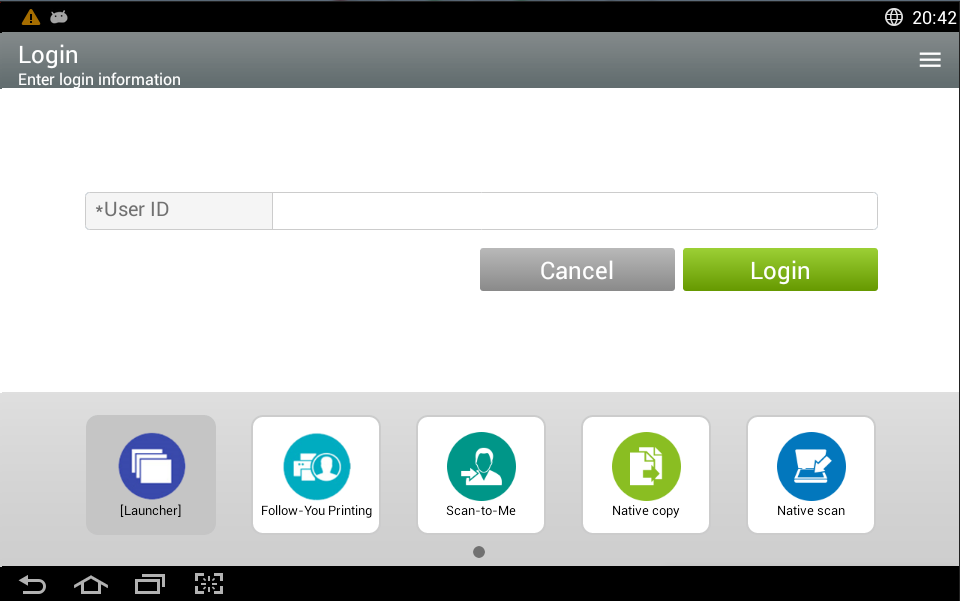

After the Samsung Smart UX starts, you can display the Login screen either by tapping anywhere in the main window, or swiping across the screen in either direction:

On this screen, users must provide valid authentication credentials before they can access the device functions available to them.

If there are quick shortcut options available through a configured container, they display directly on both the Welcome and Login screens, as above. Users can opt to select the desired option and then authenticate, so when they login, they are taken directly to the workflow they selected. Otherwise, users are presented with the default option the administrator has chosen in the Quick Select Container, which contains their selection of workflows, governed by how Workflows and their respective Workflow Containers are configured in Equitrac Office or Equitrac Express, after they login.

The login process follows this general path:

  1. Touch anywhere in the main display window, or use touchscreen type gestures to swipe in either direction on the screen to display the Login screen.
  2. (Optional) Select the desired Quick Selection option from the list on the screen, if available.
  3. Enter valid login credentials using the on-screen keyboard (invoked by tapping within the User ID field), or by presenting your card.

    Depending on configuration, one or more login fields may appear. The following are examples of valid login credentials:

    • Equitrac primary PIN only
    • Equitrac primary and secondary PINs
    • Windows Networking credentials — network user name and password
    • Present a card at the card reader
    • Present a card and Equitrac secondary PIN
    • Present a card and provide Windows password
    • Equitrac primary PIN and Windows password
    • Campus card swiped at the card reader. (for Equitrac Express only)
    Note: The last prompt field on the Login screen is masked to protect your login credentials. If secondary prompts are not enabled on the server, the User ID field is masked (***). If secondary prompts are enabled, the second field is masked instead.
  4. Touch the Login button.
Completing this task opens the Launcher screen or selected Quick Selection workflow.
