This procedure provides the basic steps for connecting an Ethernet Card Reader to a
printer.

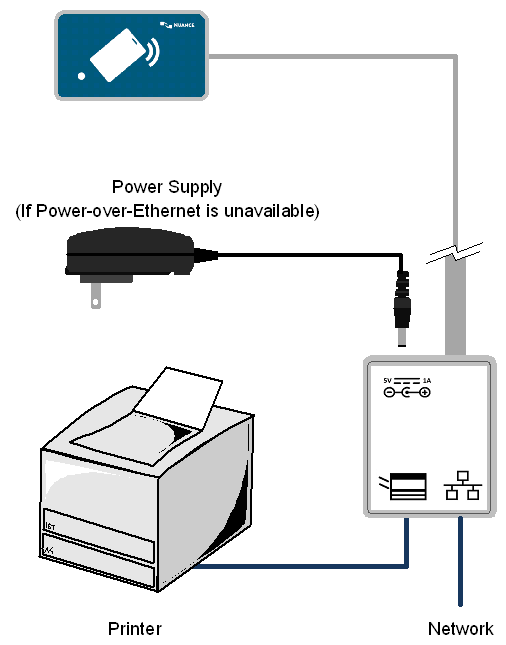

The following diagram shows the physical hardware connections:
To connect the
Ethernet Card Reader, do the following:
Disconnect the existing network cable from the printer and connect it to the
Network port on the card reader.
Connect the provided Ethernet cable to the printer’s network jack and the
Printer port on the card reader.
If the network does not supply Power-over-Ethernet, attach the separate power
supply to the card reader.
Secure the card reader near or on the printer using the provided self-adhesive
Velcro strips.
Secure the card reader cables using the cable ties and self-adhesive cable tie
mounts.
When the card reader is powered up, the card reader beeps and the LED light appears
orange for a few seconds, then changes to the appropriate light for its current state.
See LED Status
Messages.
